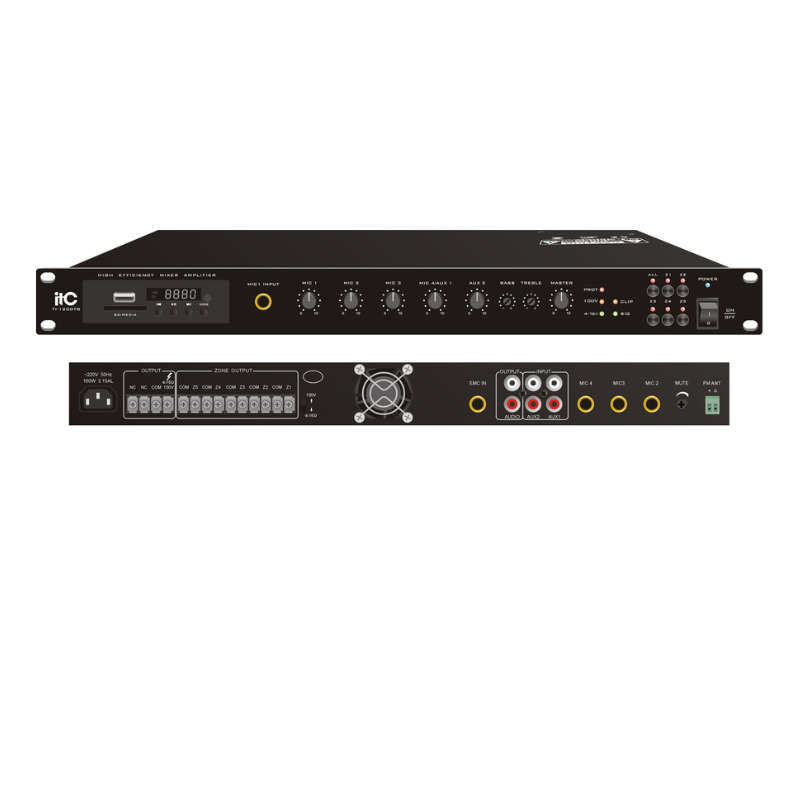

The ITC T-240DTB Digital Mixer Amplifier is a versatile and high-performance audio solution designed for professional audio applications. Rated at 240W RMS power, this 1U rack-mounted unit combines MP3, tuner, and Bluetooth functionality, offering flexible audio input options. The integrated LCD display allows users to view track information and control playback efficiently.

The amplifier supports a wide range of audio file formats including MP3, WMA, APE, FLAC, WAV, and AAC via USB drives, ensuring compatibility with modern multimedia sources. Additionally, the T-240DTB supports Bluetooth audio streaming from mobile devices, with song titles displayed on the LCD screen for convenient monitoring.

Inputs include four microphone channels (5mV/600Ω unbalanced via 6.3mm connectors), two AUX inputs (350mV/10kΩ unbalanced RCA), and an EMC input (775mV/10kΩ unbalanced 6.3mm). The MIX OUT provides 1000mV/470Ω unbalanced RCA output. Bass and treble controls allow ±10dB adjustment at 100Hz and 10kHz, respectively, while the frequency response of 50Hz–16kHz (+1/-3dB) ensures balanced, clear sound reproduction.

The T-240DTB features a priority mute function, giving precedence to MIC1 over other microphones and AUX inputs, with EMC overriding all audio sources. Fan-assisted heat dissipation ensures reliable operation, with automatically adjustable fan speed. Built-in protections guard against overheat, overcurrent, and short-circuit conditions, enhancing operational safety.

Key Features:

• RMS Power: 240W for robust audio output

• Input Options: MIC1-4 (phone jack), AUX1-2, EMC inputs for versatile connectivity

• Audio Playback: Supports USB playback of MP3, WMA, APE, FLAC, WAV, AAC files

• Bluetooth: Mobile phone Bluetooth streaming with LCD track display

• Tone Control: Bass ±10dB at 100Hz, Treble ±10dB at 10kHz for sound customization

• Frequency Response: 50Hz – 16kHz (+1/-3dB) for clear, balanced audio

• Mute & Priority Function: MIC1 priority over other channels; EMC priority over all inputs

• Heat Dissipation: Side-in/rear-out fan cooling with variable speed

• Protection: Overheat, overcurrent, and short-circuit protection

• Rack-Mountable: Standard 1U design with SMT technology for professional installation

• Dimensions & Weight: 484×300×44mm, Weight: 3.8kg

The ITC T-240DTB Digital Mixer Amplifier is ideal for professional sound systems, conference halls, and multimedia environments, offering powerful audio output, flexible connectivity, and advanced playback features with reliable performance and modern design.
