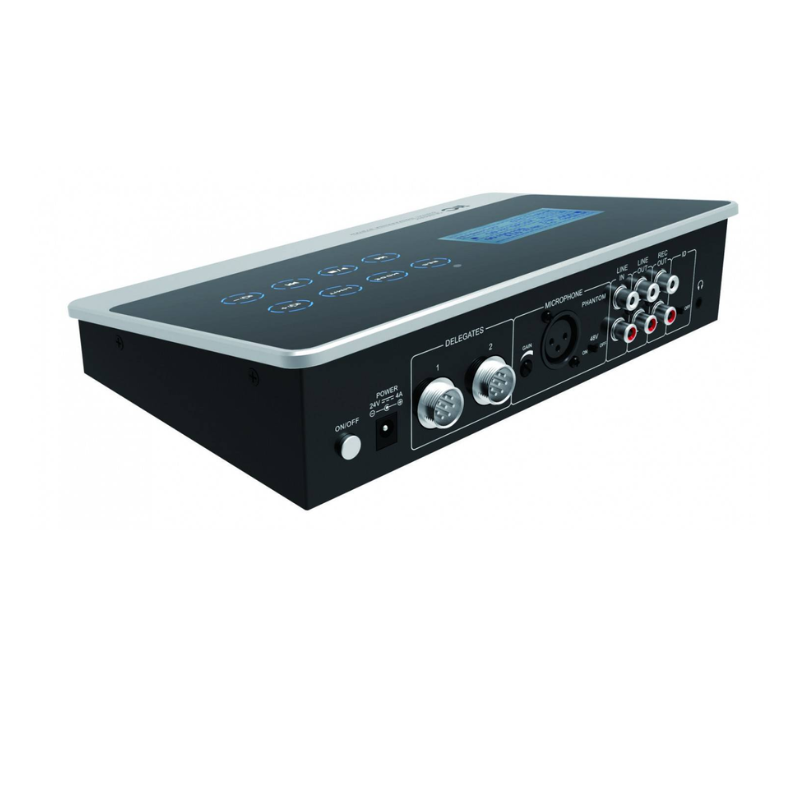

The ITC TS-0605M Digital Conference System Extension Controller is designed for efficient management and seamless control of conference systems. Featuring smart touch buttons, this controller offers an intuitive and user-friendly interface, allowing operators to control microphone quantity (up to 30 microphones), switch between conference modes, and adjust volume levels easily. It also provides recording and playback control, making it an excellent choice for conference recordings and reviews.

The controller ensures high-quality audio with a frequency response of 30Hz-20kHz, an SNR of >75 dB(A), and a dynamic range of >80 dB. Crosstalk is minimized to >80 dB, and the THD is kept below 0.05%, ensuring clear, distortion-free sound throughout the conference. The LINE IN and LINE OUT connections provide balanced audio input and output, and the 8-pin aviation plug connector ensures a stable and secure connection.

The ITC TS-0605M is powered by a 24V DC supply, with static consumption of just 10W and output consumption of 70W, making it energy-efficient and reliable. It operates within a temperature range of -10℃ to +60℃ and relative humidity of 20%-80% (non-condensing), making it suitable for various conference room environments. The controller is compact and lightweight, with a black finish and dimensions of 210mm x 132mm x 50mm, weighing just 1.65kg.

Key Features:

• Microphone Capacity: Supports up to 30 microphones for larger conferences

• Smart Touch Buttons: For easy operation and control

• Recording & Playback Control: Convenient for managing conference recordings

• Frequency Response: 30Hz – 20kHz for clear, full-range sound

• Audio Performance: SNR >75 dB(A), Crosstalk >80 dB, THD <0.05% for high-quality sound

• Power Supply: 24V DC for reliable operation

• Input/Output: LINE IN (350mV balance), LINE OUT 1 (1V balance) for easy integration

• Energy-Efficient: Static consumption of 10W, output consumption of 70W

• Dimensions: 210mm x 132mm x 50mm, Weight: 1.65kg

• Connector: 8-pin aviation plug for secure connections

The ITC TS-0605M Digital Conference System Extension Controller is a reliable, easy-to-use solution for managing conference systems, offering high-quality audio control, recording capabilities, and seamless integration into your conference environment.
