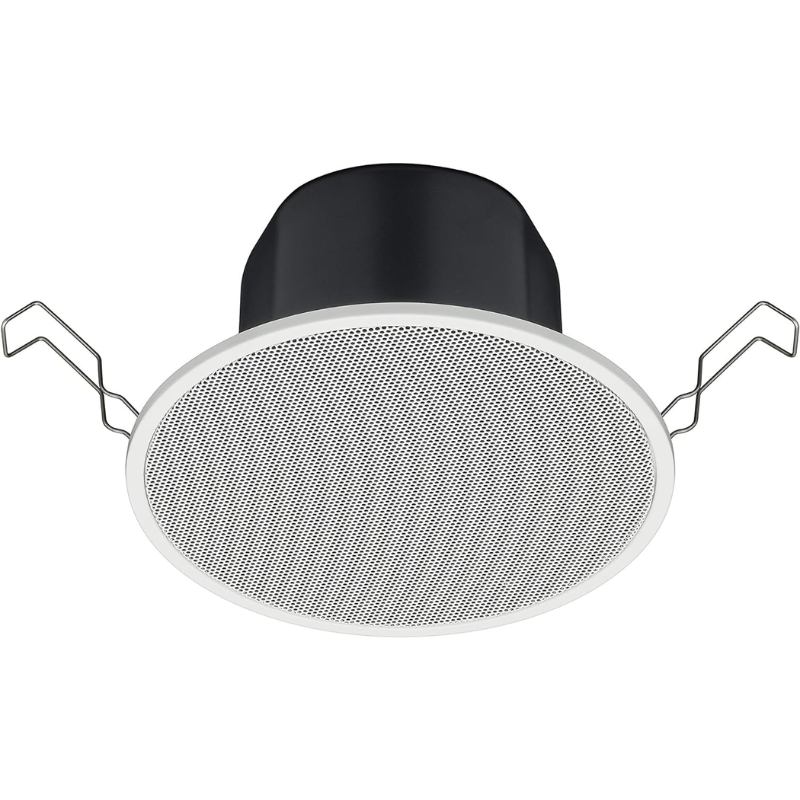

The TOA PC-1860BS Ceiling Speaker is specifically designed for high-quality background music (BGM) and announcement systems, offering exceptional performance in environments requiring clear, reliable sound. Its design seamlessly integrates with modern architecture, making it an ideal choice for commercial spaces, offices, and public venues.

Equipped with a 12 cm cone-type speaker component, the PC-1860BS delivers a broad frequency response from 170 Hz to 20 kHz, ensuring clear and natural sound across a wide range of audio applications. The speaker has a sensitivity of 95 dB at 1W, 1m and can achieve a maximum sound pressure level (SPL) of 100 dB at 6W, ensuring it fills large spaces with high-quality audio.

For safety, the TOA PC-1860BS features a fire dome designed to meet British Standard BS 5839-8: 2008 and EN54-24. This feature prevents the spread of fire through the ceiling and ensures the safety of the space in case of an emergency. It also provides protection against dust and water with an IP21C rating, making it suitable for a variety of installations.

The speaker offers multiple impedance settings, making it highly versatile. With tappings for 100V and 70V line systems, it can be configured to meet the specific needs of the installation. The mounting hole size of 156 mm and the inclusion of rubber grommets and a paper pattern make installation quick and easy.

Key Features:

• High-Quality Sound: Frequency response of 170 Hz – 20 kHz and 95 dB sensitivity at 1W/1m

• Fire Protection: Equipped with a fire dome, complying with BS 5839-8: 2008 and EN54-24 standards

• Flexible Impedance: Supports 100V and 70V line systems with multiple tappings for impedance matching

• Compact Design: 180 mm (Ø) x 105 mm (D) size for easy integration into ceilings

• Dust/Water Protection: IP 21C rating for protection in various environmental conditions

• Durable Construction: Steel plate enclosure and a steel net grille, painted in traffic white (RAL 9016)

• Easy Installation: Includes rubber grommets and paper pattern for convenient mounting

Accessories Included:

• Rubber grommet x 2

• Paper pattern x 1

Optional:
For installation flexibility, the speaker can be mounted easily using the included components, and additional mounting options can be considered depending on the application.

The TOA PC-1860BS Ceiling Speaker is the perfect solution for those seeking high-quality sound in public spaces, with safety features and versatile installation options that make it suitable for a range of environments.
