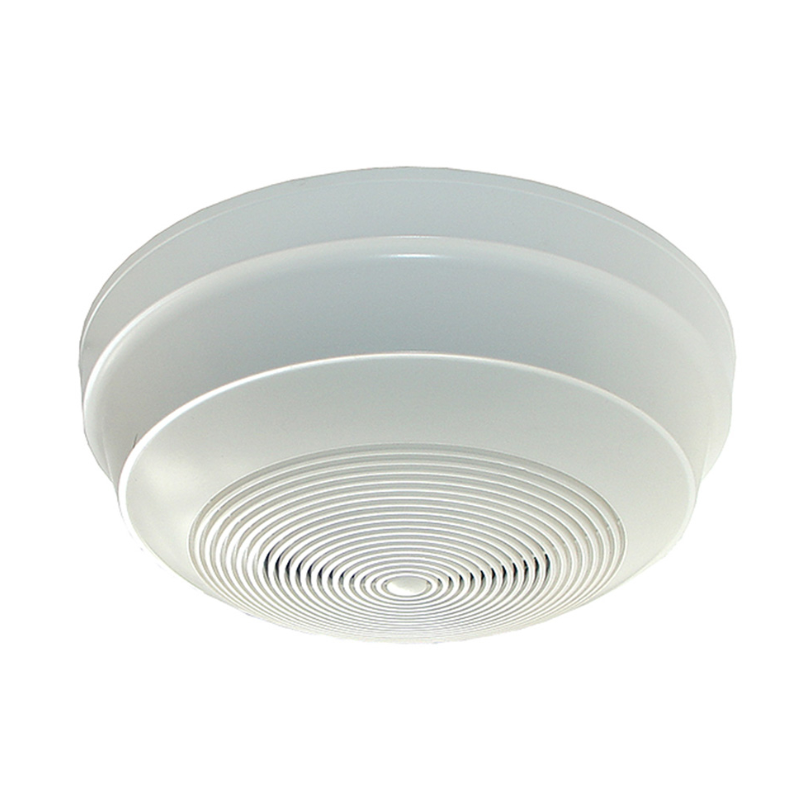

The TOA PC-2668 Surface-Mounting Ceiling Speaker offers an ideal solution for installations where flush mounting is not possible. Designed for ease of use, it features a spring catch method that allows for quick and simple installation. The push-in connector enables rapid wiring, while bridging terminals allow for easy speaker line connections, making setup a breeze.

This speaker is perfect for use in commercial environments, providing high-quality sound through a 12 cm (5″) cone-type speaker unit. It supports both 100V and 70V line applications, with selectable impedance settings that make it a flexible option for various audio systems. The frequency response spans from 100 Hz to 18 kHz, delivering clear and balanced sound for announcements, background music, and public address systems.

The compact design ensures that the TOA PC-2668 fits seamlessly into your space, with a mounting hole of φ145±5 mm and ceiling thickness compatibility ranging from 5 mm to 25 mm. Its durable polypropylene resin baffle and surface-treated steel net grille, finished in white (RAL 9016 equivalent), complement a variety of interior styles.

Key Features:

• Easy Installation: Spring clamp and push-in connector for quick and easy mounting

• Flexible Impedance: 100V and 70V line support with selectable impedance options

• High-Quality Sound: Frequency response of 100 Hz – 18 kHz with 90 dB sensitivity

• Compact Design: Suitable for surface mounting where flush mounting is not possible

• Durable Construction: White polypropylene resin baffle and steel net grille

• Versatile: Ideal for commercial spaces requiring clear audio for background music and announcements

Dimensions:

• Overall Dimensions: φ168 × 77 (D) mm (φ6.61″ × 3.03″)

• Mounting Hole Size: φ145±5 mm (φ5.71″±0.2″)

• Ceiling Thickness Compatibility: 5 – 25 mm (0.2″ – 0.98″)

Accessories Included:

• Paper pattern for easy installation

The TOA PC-2668 Surface-Mounting Ceiling Speaker is the ideal solution for sound installation in spaces that require an exposed ceiling mount. Its simple installation process, excellent sound quality, and versatile design make it perfect for a wide range of commercial applications.
