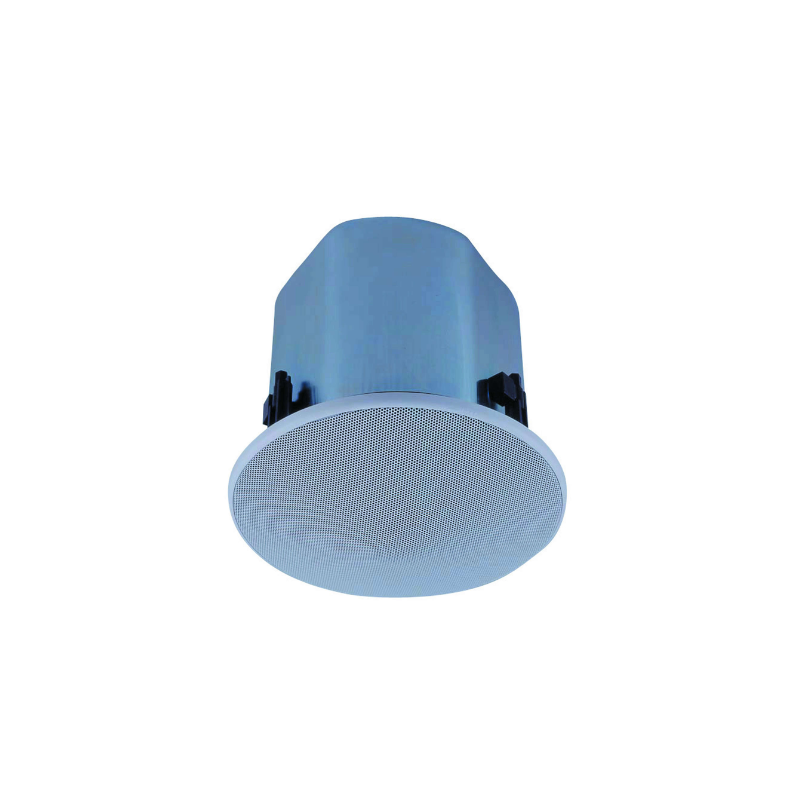

The TOA PC-F-2352C Ceiling Speaker is a high-performance audio solution designed for commercial and public address systems. Ideal for voice alarm systems, this speaker features a robust all-metal construction and a spring clamp mechanism for easy installation to the ceiling. It provides flexibility in impedance matching, allowing for adjustments through the transformer tap position. The speaker also includes a push-in terminal block for convenient and quick cable connections, ensuring a hassle-free setup.

With a rated input of 30W (High Impedance), the TOA PC-F-2352C Ceiling Speaker ensures excellent audio quality, making it suitable for both background music and voice announcements. The speaker boasts a frequency response of 70 Hz – 20 kHz, providing clear and full-range sound. Its 90 dB sensitivity ensures efficient sound distribution across larger areas, making it perfect for large commercial spaces or public venues.

The speaker’s high-quality 12 cm cone-type woofer and balanced dome-type tweeter provide rich, clear audio for a wide variety of applications. With multiple impedance options for 100V, 70V, and 25V lines, it offers excellent compatibility with different audio systems.

Key Features:

• High-Quality Audio: 30W rated input, 70 Hz – 20 kHz frequency response, and 90 dB sensitivity.

• Easy Installation: Spring clamp mechanism and push-in connector for quick and easy ceiling installation.

• Flexible Impedance Options: Multiple tap settings for 100V, 70V, and 25V lines.

• Durable Build: Steel plate construction with fire-resistant ABS resin.

• Versatile Use: Ideal for voice alarm systems, background music, and public announcements.

Dimensions:

• Overall Dimensions: φ280 × 92 (D) mm (φ11.02″ × 3.62″)

• Mounting Hole Size: φ250±3 mm (φ9.84″±0.12″)

• Ceiling Thickness Compatibility: 5 – 25 mm (0.2″ – 0.98″)

Accessories Included:

• Panel

• Ceiling reinforcement ring

• Safety wire

• Paper pattern for installation

Optional Accessories:

• Anchor hanging bracket: HY-AH1

• Back can: HY-BC1

• Tile bar bridge: HY-TB1

• Trim ring: HY-TR1

The TOA PC-F-2352C Ceiling Speaker offers reliable and high-quality sound with flexible installation options, making it a perfect choice for modern audio systems in commercial and public environments.
