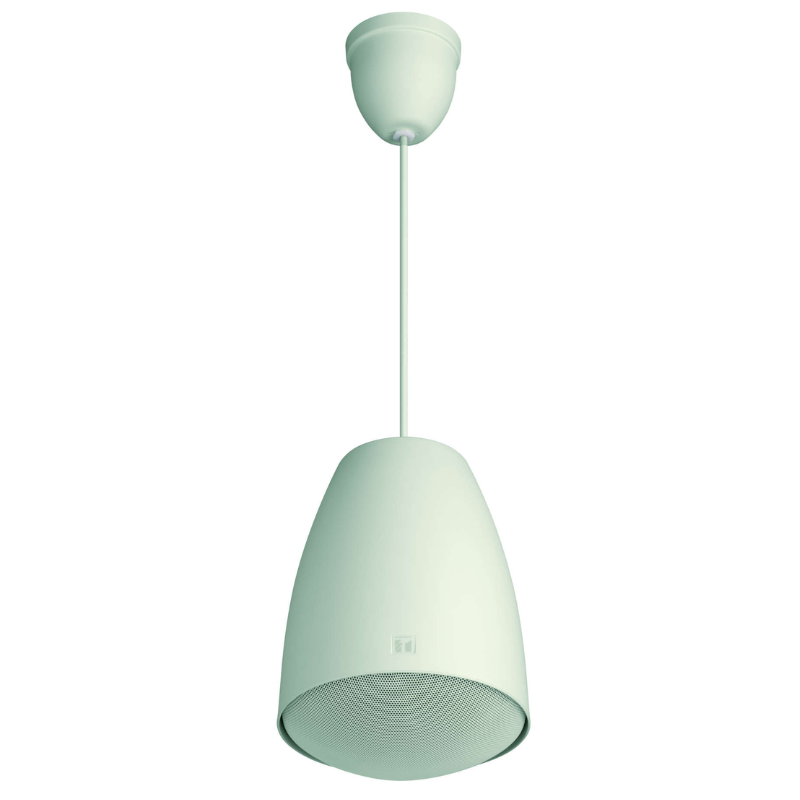

The TOA PE-304 Pendent Speaker is designed to deliver exceptional sound quality with a modern and stylish appearance. It is perfect for background music (BGM) and announcements, making it an excellent choice for commercial, hospitality, and residential environments. Its sleek design, inspired by top-tier lighting fixtures, adds a touch of elegance to any space.

Equipped with a 12 cm (5″) cone-type woofer and a balanced dome tweeter, this 30W 2-way speaker offers clear and powerful sound. The bass-reflex type enclosure enhances low-frequency response, providing rich and well-balanced audio. With a frequency response of 70 Hz – 20,000 Hz, the speaker ensures clear and dynamic sound across a wide range.

The TOA PE-304 features a paintable design, allowing it to seamlessly blend with any interior decor. The speaker comes with a sturdy cable that extends up to 5 meters, giving flexibility in installation.

Additionally, the speaker’s input impedance is easily adjustable, making it compatible with both 100V line and 70V line systems. This ensures versatility for different audio setups, whether for residential or commercial use.

Key Features:

• Rated Input: 15W (100V LINE), 15W (70V LINE)

• Sensitivity: 91 dB (1 W, 1 m) at 500 Hz – 5 kHz, pink noise

• Frequency Response: 70 – 20,000 Hz (-20 dB)

• Bass-Reflex Type: Enhances low-frequency performance

• Design: Stylish and modern, inspired by lighting fixtures

• Easy Installation: Push-in connector and extendable cable (up to 5 meters)

• Versatile Impedance: Easy to change input impedance for different setups

Dimensions:

• Unit Size: φ186 × 251 (H) mm (φ7.32″ × 9.88″)

Accessories Included:

• Enclosure: HIPS resin, off-white (RAL 9010)

• Grille: Surface-treated steel plate net, off-white (RAL 9010)

• Cable Connector: Push-in connector (bridging terminal-2 branch type)

Optional Cable:

• 600 V vinyl-insulated cable (IV wire or HIV wire)

• Solid copper wire: φ0.8 – φ1.6 mm (AWG 20 – 14)

• 7-core twisted copper wire: 0.75 – 1.25 mm² (AWG 18 – 16)

The TOA PE-304 Pendent Speaker is an outstanding solution for any space needing both style and high-quality sound. Perfect for ceiling installation, it provides versatile and reliable audio performance.
