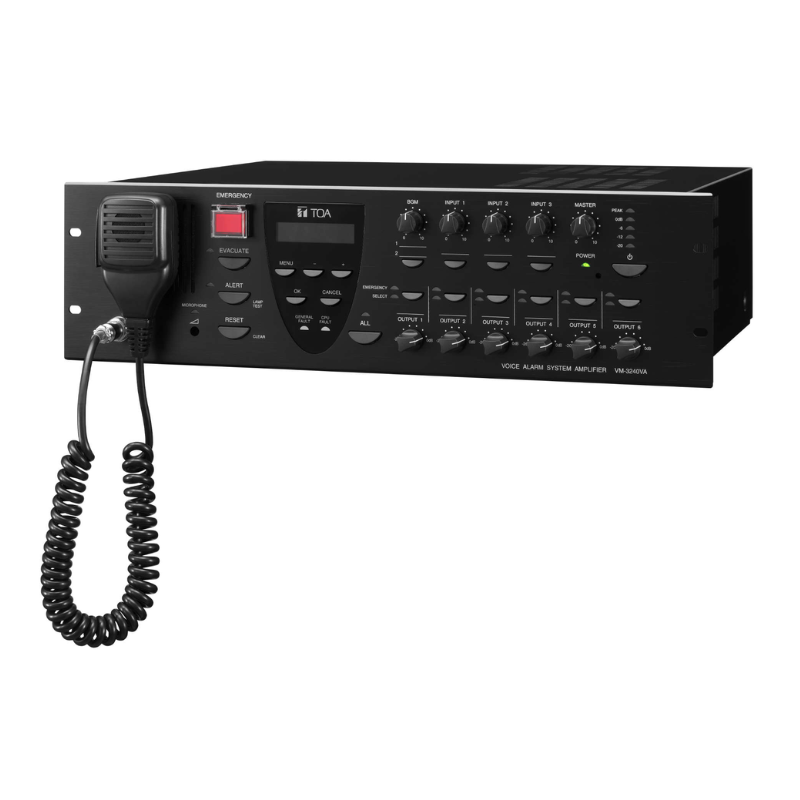

The TOA VM-3240VA System Management Amplifier is a powerful, multifunctional amplifier designed for large commercial and public address systems. Delivering 240W total output across 6 zones, this amplifier offers flexible input and output options, making it ideal for both routine and emergency broadcast needs. It features remote microphone control, a voice message store, and emergency broadcast compliance with EN 54 standards, ensuring reliable and clear communication during critical situations.

Key features of the VM-3240VA include:

• 240W Output: Powers up to 6 zones, with adjustable volume control from the front panel, ideal for multi-zone installations.

• Emergency Broadcast Capability: Compliant with EN 54, providing pre-recorded emergency voice messages (optional EV-200M required).

• Up to 8 Remote Microphones: Supports 4 general microphones and 4 emergency microphones, allowing flexible audio control across zones.

• High-Quality Voice Message Storage: Built-in electronic voice message store for 6 general messages and 2 emergency messages, ensuring reliable playback during emergencies.

• Comprehensive Control Inputs and Outputs: Includes no-voltage make contact inputs for activation, and isolated open collector outputs for controlling external systems such as attenuators or amplifiers.

• 5-Segment Bargraph & Indicators: Provides clear visual indicators for zone selection, emergency activation, evacuation status, and general system faults.

• Flexible Connectivity: Offers various input options, including MIC, LINE, BGM, and external amplifier inputs, ensuring seamless integration with different audio sources.

• High Operating Range: Temperature range from -5°C to +45°C and 5% to 95% RH humidity tolerance, suitable for various environments.

• Compact & Durable Design: Housed in a black, surface-treated aluminium and steel plate casing, the amplifier is compact and robust, measuring 482 x 132.6 x 431.2 mm and weighing 16.5 kg.

The TOA VM-3240VA is an essential component for large-scale audio systems requiring high-quality sound management, emergency broadcasting, and flexible control. Its reliable performance and advanced features make it an ideal choice for commercial, educational, and public safety applications, ensuring seamless operation in both routine and emergency scenarios.
