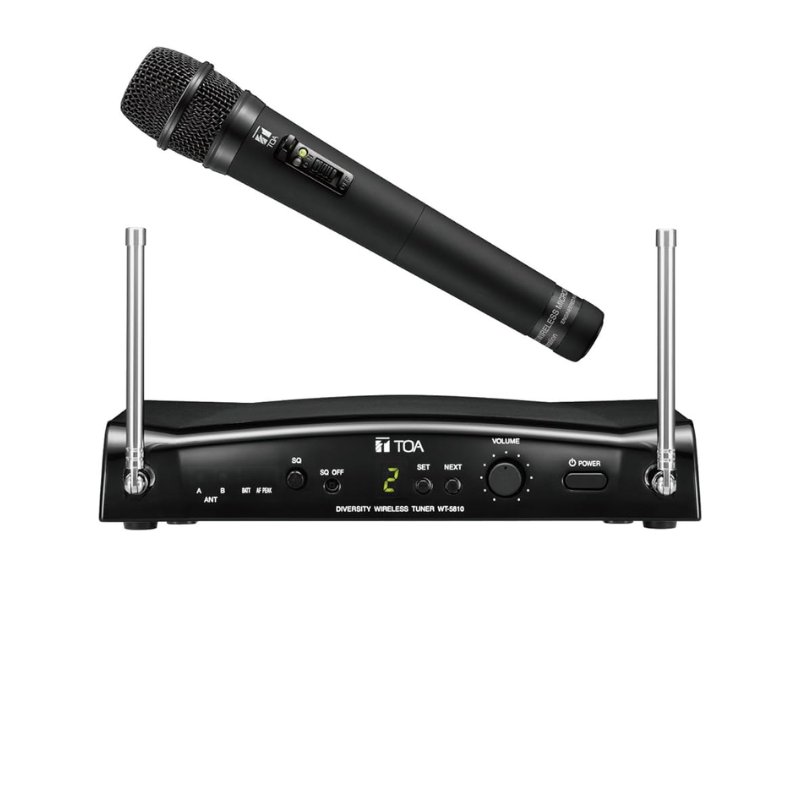

The TOA WS-5225 Wireless Microphone Set is a high-quality wireless microphone system designed for professional sound applications. It features a UHF frequency range of 576–865 MHz and supports 64 selectable channels (channel availability may vary by country), providing flexible options for seamless audio transmission. This system includes a handheld wireless microphone (WM-5225) and a diversity wireless tuner (WT-5810) for enhanced signal stability and audio clarity.

The microphone uses an electret condenser unidirectional microphone element, offering a frequency response of 100Hz–15kHz, ensuring clear and natural sound. With a PLL synthesized oscillator, the system ensures stable frequency modulation with a maximum deviation of ±40 kHz. The microphone has a maximum input level of 126 dB SPL, making it ideal for high-energy environments and capturing loud sounds without distortion.

The TOA WS-5225 system is powered by either the WB-2000 rechargeable battery (option) or AA alkaline batteries. With the rechargeable WB-2000 battery, the microphone provides approximately 13 hours of continuous operation, while using alkaline batteries, it lasts for approximately 10 hours. The handheld microphone also features power and battery indicator lamps for convenient monitoring.

The diversity wireless tuner uses a double super-heterodyne system and a space diversity system for superior signal reception. The receiver offers 16 selectable channels and provides a balanced XLR output for the MIC and an unbalanced phone jack output for the LINE, ensuring compatibility with various audio equipment. The system features a signal-to-noise ratio of 104 dB or more, and its frequency response ranges from 100Hz to 15kHz (±3 dB), delivering clear, high-fidelity sound with less than 1% harmonic distortion.

The set also includes features like squelch sensitivity (16–40 dBμV), an antenna system with a whip antenna, and an LCD indicator that shows ANT A/B, audio peak, battery alarm, and channel number, ensuring ease of use and monitoring during live events.

Key Features:

• Frequency Range: 576–865 MHz UHF with 64 selectable channels for flexible audio management

• Microphone Type: Electret condenser unidirectional microphone for clear, focused sound

• Battery Life: 13 hours with WB-2000 rechargeable battery, 10 hours with AA alkaline batteries

• Tuner System: Diversity wireless tuner with double super-heterodyne and space diversity for improved reception

• Tone Frequency: 32.768 kHz for accurate sound transmission

• Signal-to-Noise Ratio (SNR): ≥104 dB for high-fidelity audio performance

• Frequency Response: 100Hz – 15kHz (±3 dB) for clear, full-range sound

• Inputs/Outputs: MIC input (XLR-3-32), LINE input (phone jack), AUX output (1000mV/470Ω), and MIX output

• Protection Features: Overload, short-circuit, and overheating protection for safe use

• Display & Indicators: LCD with channel number, squelch, battery alarm, and audio peak indicators

• Dimensions & Weight: Microphone: 43.6mm x 231.5mm, 180g; Tuner: 206mm x 40.6mm x 152.7mm, 590g

The TOA WS-5225 Wireless Microphone Set is an ideal choice for professional audio applications such as conferences, performances, and broadcasts, offering reliable wireless performance, high-quality sound, and long-lasting battery life. Its easy-to-use features and versatile design make it a top pick for any event requiring seamless audio transmission.
