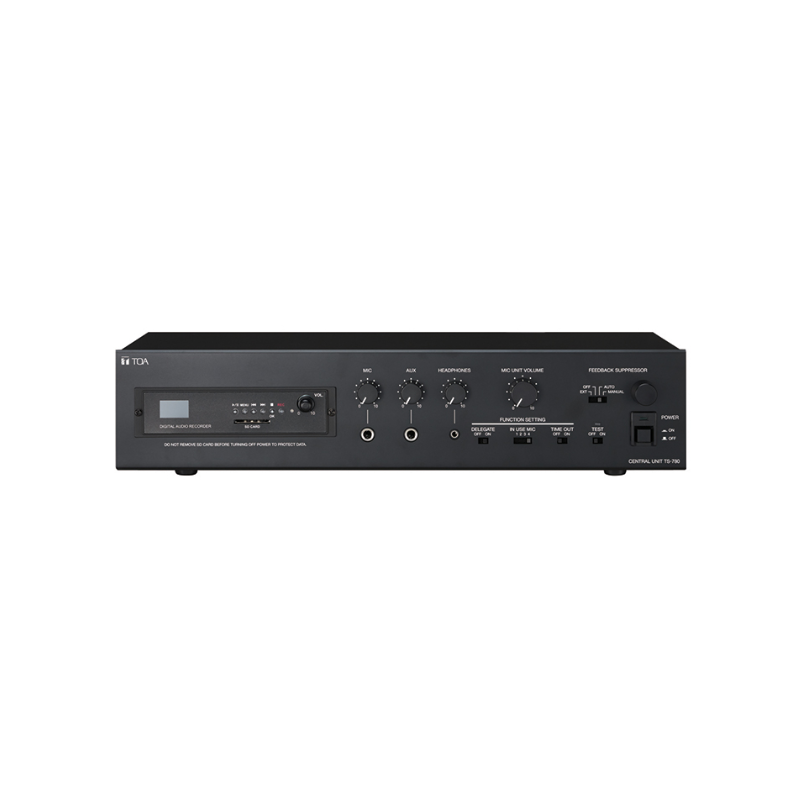

The TOA TS-780 Central Unit is a powerful and versatile component for the TOA Conference System, designed to handle multiple conference units while maintaining high-quality audio and seamless communication. It features line connection terminals that allow easy connections to the TS-781 and TS-782 conference units, enabling the creation of a flexible and expandable conference system. With the capability to connect up to 3 central units, the TS-780 can be expanded to meet the needs of larger conference setups.

One of the standout features of the TS-780 is its MP3 recorder, which allows conference contents to be recorded directly to an SD card for later playback or documentation. This feature ensures that important discussions are captured and can be easily reviewed. The unit also offers a variety of control functions, such as a priority speech chime, speaker restriction (up to 4 delegate units), and an automatic microphone-off function, which can be set to activate after 30 seconds.

The TS-780 also includes a feedback suppressor (FBS), with selectable EXT, OFF, AUTO, and MANUAL modes, providing optimal sound quality and minimizing unwanted audio feedback during the conference. The unit features both input and output terminals for various connections, including a recording output for external devices and headphone output for private listening.

For flexible installation, the TS-780 can be mounted in an EIA Standard equipment rack using the optional rack mounting bracket (MB-23B), making it a space-efficient solution for conference room setups. It is powered by a 220–240V AC supply, and its sturdy construction with an aluminum panel and steel case ensures durability in professional environments.

Key Features:

• MP3 Recording: Record and playback conference content directly to an SD card

• Expandable System: Connect up to 3 central units for larger conference setups

• Feedback Suppressor (FBS): Selectable modes (EXT, OFF, AUTO, MANUAL) to minimize audio feedback

• Priority Speech Chime: Activates when the priority button is pressed on the TS-781 chairman unit

• Automatic Mic-off: Selectable 30-second auto mic-off function

• Speaker Restriction: Control the number of simultaneously usable TS-782 delegate units (0–4)

• Connection Ports: MIC, AUX, recording output, equalizer insertion, and expansion input/output terminals

• Control Options: Voltage output control for expansion units

• Power Supply: 220–240V AC, 50/60Hz, with maximum 60W power consumption

• Dimensions: 420 (W) × 96.1 (H) × 226.2 (D) mm (16.54″ × 3.78″ × 8.91″)

• Weight: 3 kg (6.61 lb)

• Finish: Aluminum panel with black gloss paint, steel case with black gloss paint

• Operating Temperature: 0°C to +40°C (32°F to 104°F)

• Humidity: 90% RH or less (no condensation)

The TOA TS-780 Central Unit offers essential features for professional conference systems, ensuring smooth communication, flexible control, and high-quality audio management. Whether for corporate meetings, large conferences, or secure recording of proceedings, this unit provides reliable performance and easy integration into any setup.
